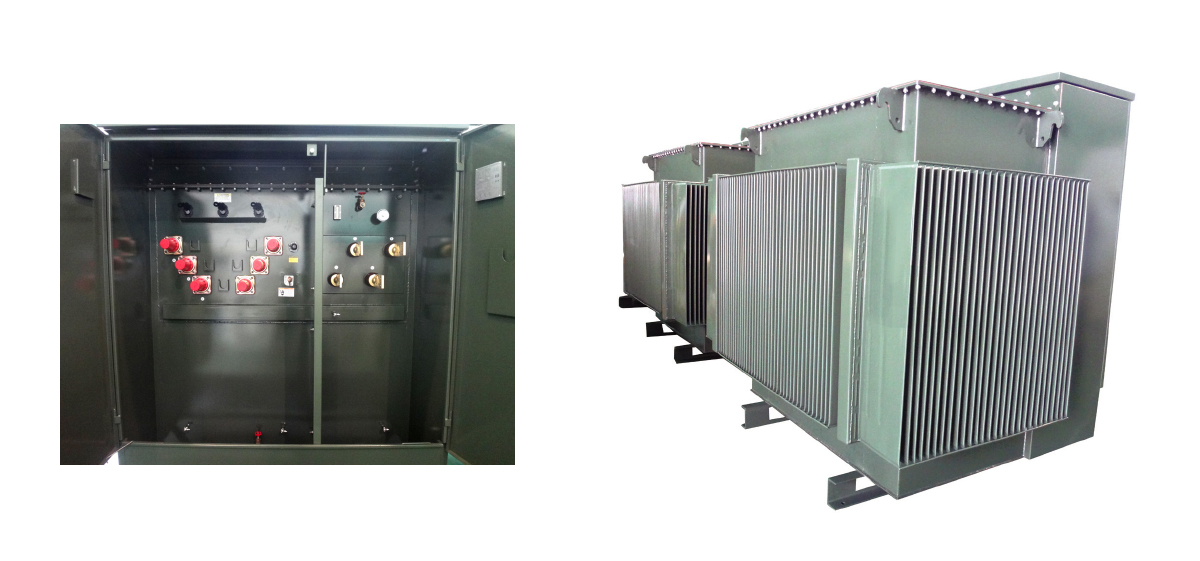

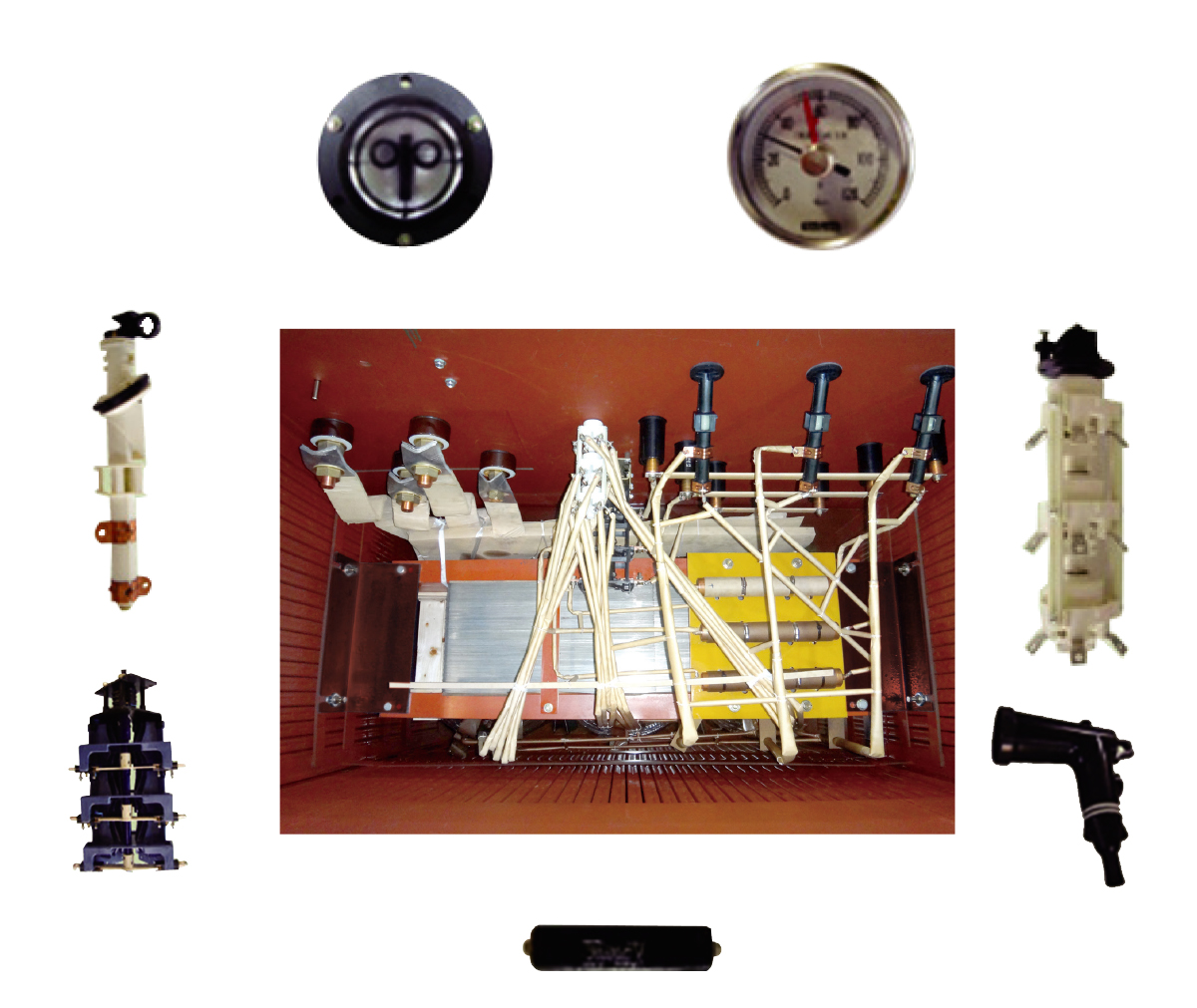

Pad Mounted Transformer
Ratings
| Phase | Single or Three Phase |
|---|---|
| Frequency | 50Hz or 60Hz |
| Rated Capacity | 30kVA - 3000kVA |
| Rated Voltage | Below 33kv |
| Polarity | Subtractive , Addltlve |
| Connection | Dyn11,Ddo,Yd1,Yz11,Dy5,Dz0 |
| Cooling System | Oil Immersed Self Cooling |
| Applying Standard | JEC-2200,IEC-60076,IEEE C57.12.90 |
Characteristics & Dimensions
Three Phase 22900V / L.V
| Capacity (kVA) | Efficiency (%) | Regulation (%) | Exciting Current (%) | Dimension | Oil(ℓ) | Total weight(kg) | ||
|---|---|---|---|---|---|---|---|---|
| W | D | H | ||||||
| 75 | 97.50 | 2.00 | 1.90 | 1500 | 1000 | 1400 | 450 | 1200 |
| 100 | 97.70 | 2.00 | 1.80 | 1500 | 1000 | 1400 | 450 | 1300 |
| 150 | 98.10 | 1.80 | 1.80 | 1500 | 1000 | 1400 | 500 | 1400 |
| 200 | 98.20 | 1.80 | 1.80 | 1500 | 1100 | 1400 | 500 | 1550 |
| 300 | 98.20 | 1.60 | 1.50 | 1500 | 1250 | 1400 | 500 | 1750 |
| 500 | 98.20 | 1.60 | 1.50 | 1500 | 1500 | 1400 | 500 | 2100 |
Tolerance:±5%
