Auto Sectionalizing Fault Switch

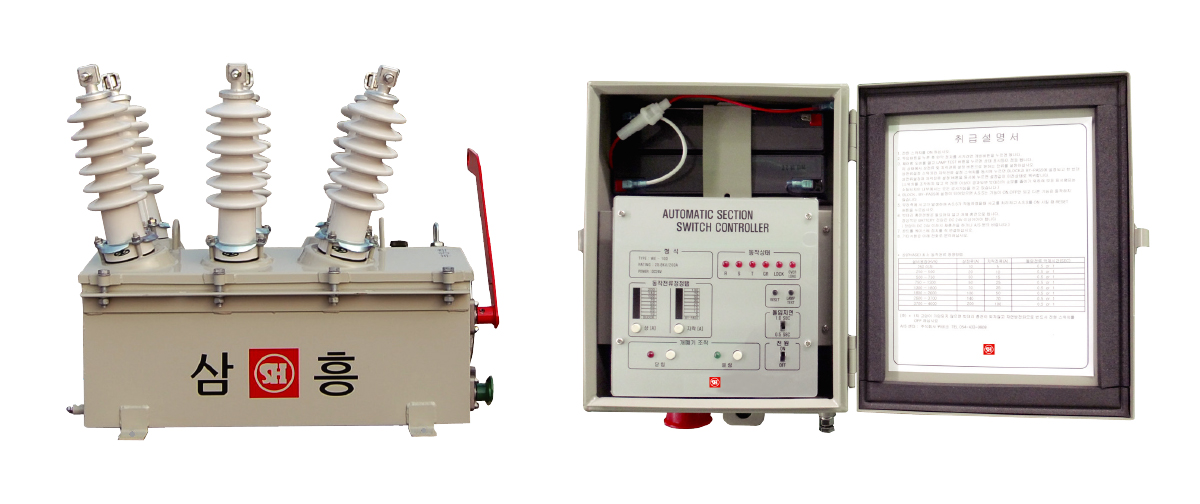

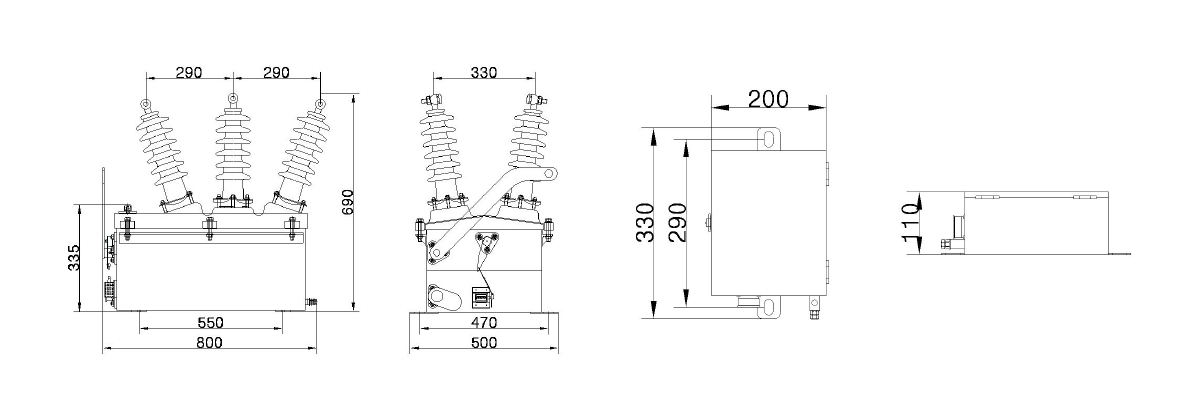

고장구간자동개폐기(옥외용) 25.8kV 200A 15kA(Asym)
정격(Ratings)
| 정격전압(Rated Voltage) | 25.8kV |
|---|---|
| 공칭전압(Normal Voltage) | 22.9kV |
| 정격주파수(Rated Frequency) | 60Hz |
| 정격전류(Rated Current) | 200A |
| 정격단시간전류(Rated Short-time Current) |
15kA Asym 10kV 1sec. Sym 3.5kV 10 sec. sym |
| 정격투입전류(Rared Closing Current) | 15kA Asym |
| 정격차단전류 (Rated Short-Circuit Making Current) |
900A |
| 조작전압(Operating Voltage) | DC24V |
| 충격내전압(Impulse Withstand Voltage(1.2x50μs) | 본체(Main Boby) : 150kV 제어회로(Control Circult) : 5kV |
| 최소동작전류(Min. Operating Current) | PHASE - 10, 20, 30, 50, 70, 100, 140, 200 (Block) GROUNG - 5, 10, 15, 25, 35, 50, 70, 100 (By-pass) * 최대과전류(Max. Over Current) 800A |
